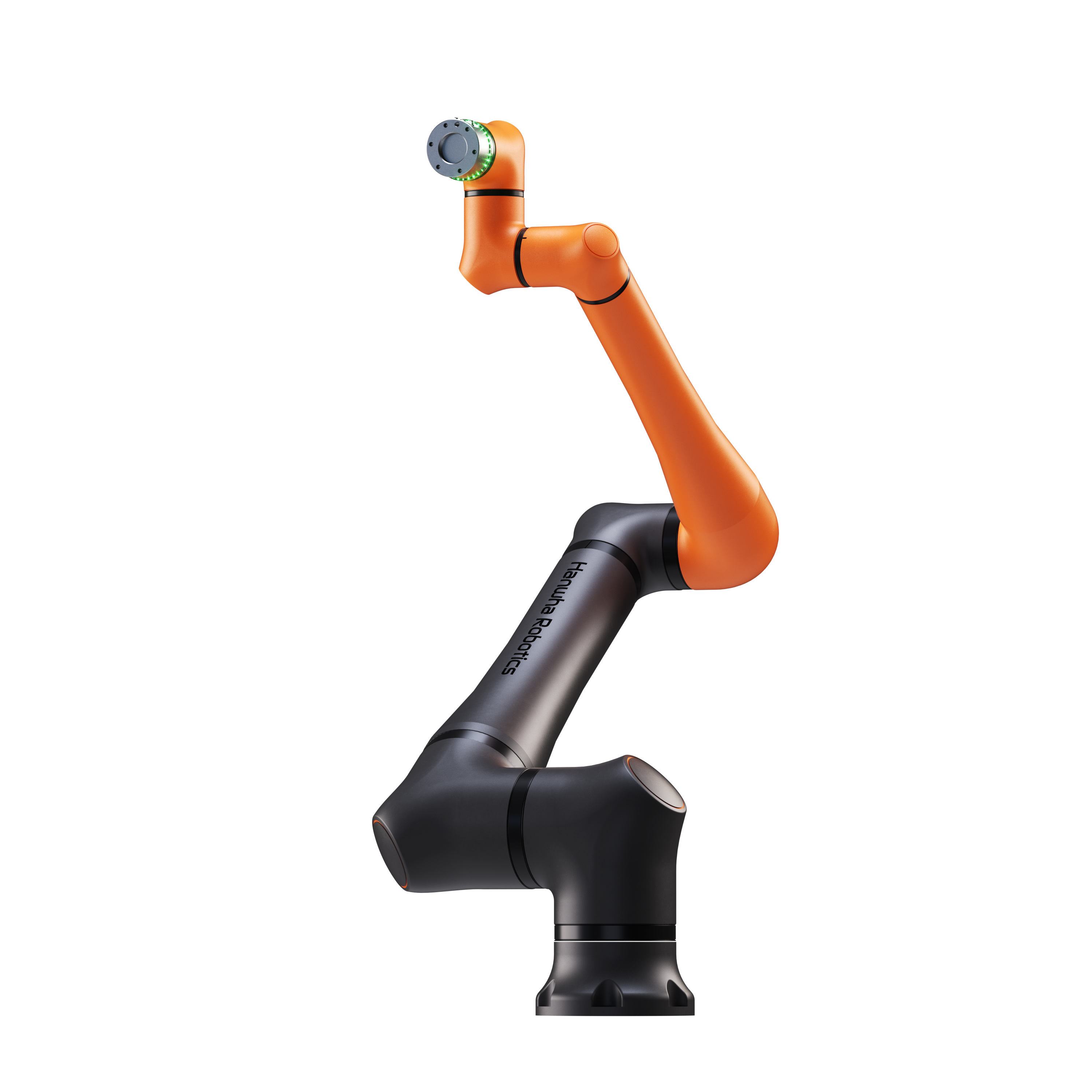

  • HCR-32 상세이미지

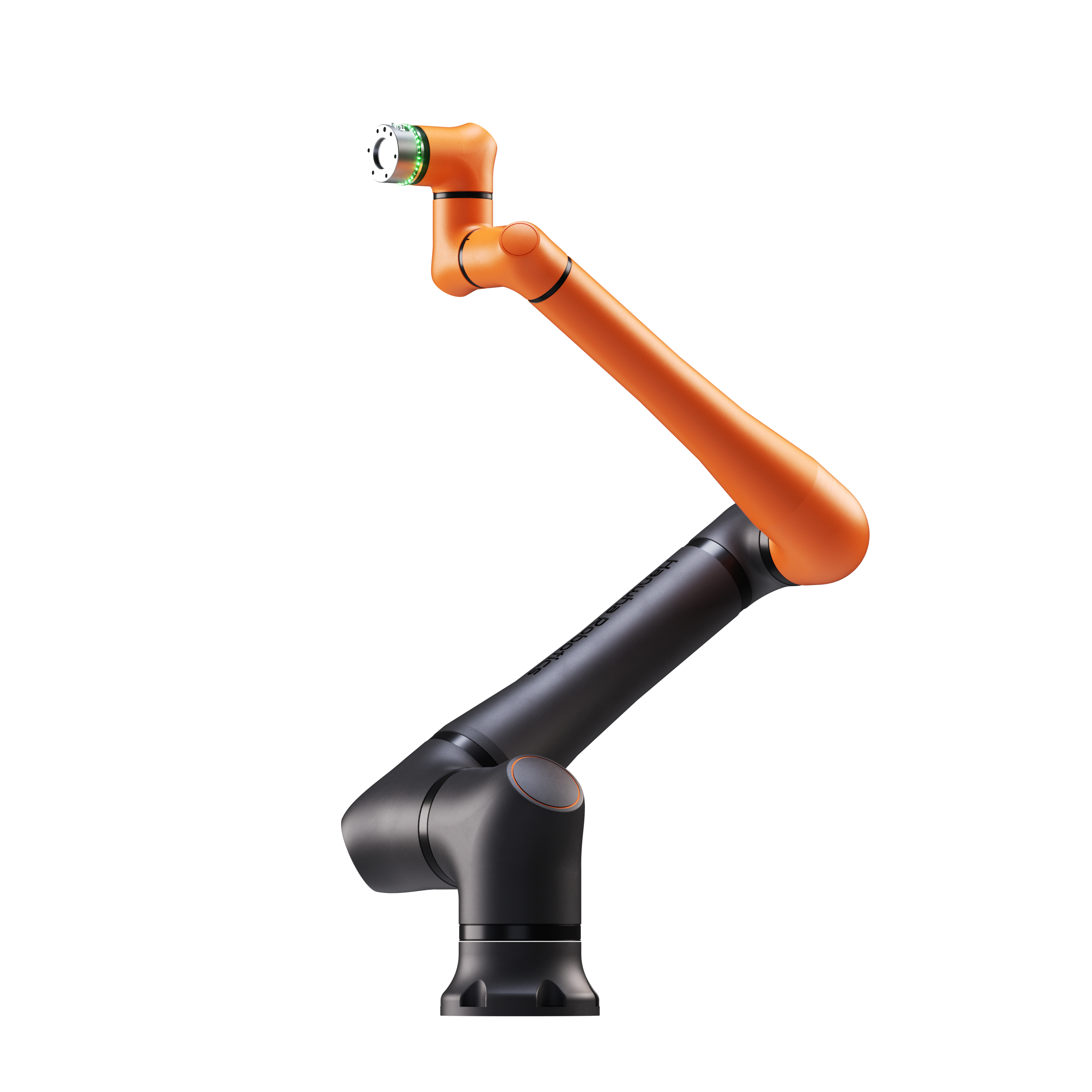

  • HCR-32 상세이미지
  • HCR-32 상세이미지
  • HCR-32 상세이미지
  • HCR-32 상세이미지
  • HCR-32 상세이미지
  • HCR-32 상세이미지
Cobot
HCR-32

The HCR-32 is a high payload type product that can work with a weight of only 82 kg in terms of weight, speed, and length.

Payload
32 kg
Reach
1,820 mm
Weight
82 kg
Product Inquiry
Specifications
Robot Body

Basic Specifications

Payload 32 kg
Reach 1820 mm
DOF 6

Performance

Repeatability ±0.05 mm
Motion Range & Speed J1 ±360°, Max 120°/sec
J2 ±360°, Max 120°/sec
J3 ±165°, Max 150°/sec
J4 ±360°, Max 225°/sec
J5 ±360°, Max 225°/sec
J6 ±360°, Max 225°/sec

Tool/IO

Tool/IO #1 Connector M8, 8pin, A Coding
Power DC 24V
Digital In 2 ch
Digital Out 2 ch
Analog In 2 ch
Tool/IO #2 Connector M8, 8pin, A Coding
Power DC 24V
Digital In 2 ch
Digital Out 2 ch
RS-485 2 ch
EtherCAT Connector M8, 6pin
DC TX+, TX-, RX+, RX-DC 24V
DC Power Max 3A (1.5A/pin)

Installation

Weight 82 kg
Footprint Ø260 mm
Robot Mounting Floor, Wall, Ceiling
IP Ratings IP65
Noise Level ≤65dBA
Controller

Basic Specifications

Size (W x H x D) 550 x 482 x 251mm
Weight 25.5 kg
Power Source 100-240 VAC, 50-60Hz (3.6kW)

Communication Protocols

TCP/IP Yes
Mobus TCP Yes
EtherNet/IP Yes

Internal I/O Ports

Emergency 2 ch ( 4ports)
Safety 2 ch ( 4ports)
Remote Power On/Off Yes / Yes
Digital In Flexible In 8 ch (SINK)
General In 8 ch (SINK)
Digital Out Flexible Out 8 ch (SOURCE)
General Out 8 ch (SOURCE)
* <1.2A/channel
Analog In 2 ch
Analog Out 2 ch
Incremental Encoder In 2 ch
Teach Pendant

Basic Specifications

Size (W x H x D) 343 x 270 x 81 mm
Weight 1.8 kg
Screen Size 12.1 inch
Display Resolution 1024 x 768
Power Switch 1 ea
Emergency Switch 1 ea
