SRP Cobot Palletiser
RCO Mechatronics BV
Description

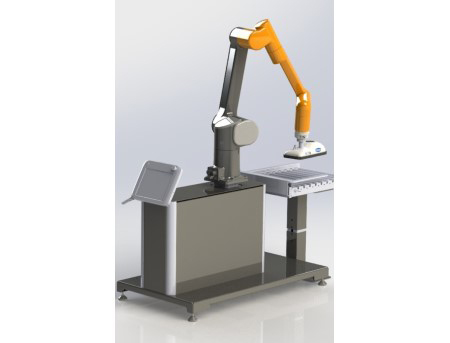

The new SRP Cobot from RCO Mechatronics is an extremely compact, versatile, and fully automatic, low-cost modular robot palletizing system based on the HCR-12A collaborative robot. It is designed for easy, low-capacity palletizing within a very small footprint. The system is available in two versions.
Specifications
Value
Hanwha HCR-12A industrial collaborative robot - max 12Kg payload
Cobot vacuum gripper (other types possible)
Floor level - 2 pallet positions for continues operation
B-version (Basic): Max ±1000 mm on Euro- and CHEP pallet,
depending on product specifications
L-version (Lift): Max. ±2000 mm on Euro and CHEP pallets - in
combination with a SKF lift kit, depending on product specifications
Maximum of 8 cases p/m, depending on product specifications
Max 10Kg per product
Standard for closed Boxes. Special applications e.g. bags, trays possible
Euro: 800mm x 1200mm and CHEP: 1000mm x 1200mm
Pickpoint roller conveyor with automatic stopper- and box alignment
Layer sheet unit
* Pallet pattern can be easily created via MultiPack, a offline software.
You can load the new pattern via USB in the robot controller and you are good to go!
호환 수준
SRP Cobot Palletiser is provided as a solution including HCR-12A
