Ecosystem
HRC-03-086003
Zimmer Group
Description

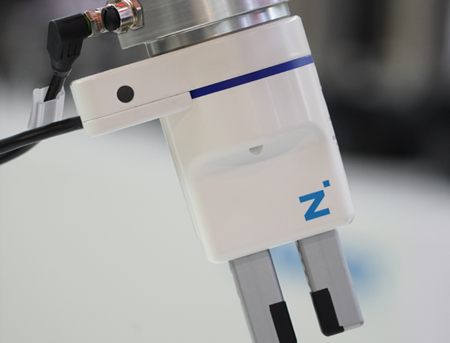

Certified Collaborative Electric 2-Finger Parallel Gripper
Operated by 24V, with digital output and analog input for detecting various workpiece dimensions without the need to readjust the part-present sensor. Includes Direct Teaching activation for easy robot programming!
Suitable applications
> Gripping and moving small to medium-sized workpieces with adjustable force in collaborative operations in assembly, electronics, plastics, and machine tool loading.
Specifications
Part number : HRC-03-086003
Feature Summary :
> Integrated Direct Teaching activation for easy robot teaching
> Electric operation requiring only 1A
> Direct connection to robot tool IO
> Direct assembly to robot flange
> Analog sensing (0-10V) for identifying different workpiece dimensions without sensor position adjustment
> Collaborative, safety approved by German DGUV/BG
> Safe gripping even during power failure via mechanical self-locking function
> Adjustable gripping force options: 50N, 100N, 150N, 190N
호환 수준
Status
HCR-3A, HCR-5A, HCR-12A, HCR-14
Compatible
M8 8pin
Digital IO of Tool IO
* Please order HCR-5A and/or HCR-12A with M8 8pin Tool IO option.
Direct Teaching Button Demo
