Ecosystem
FHS-SH-Set HCR Series
Murrplastik Systemtechnik GmbH
Description

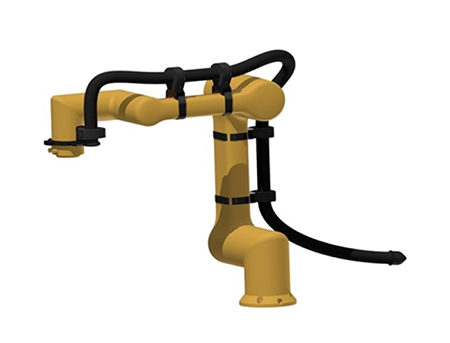

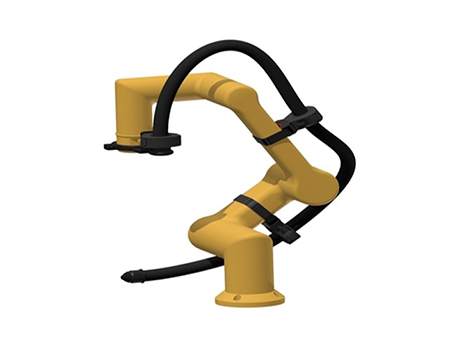

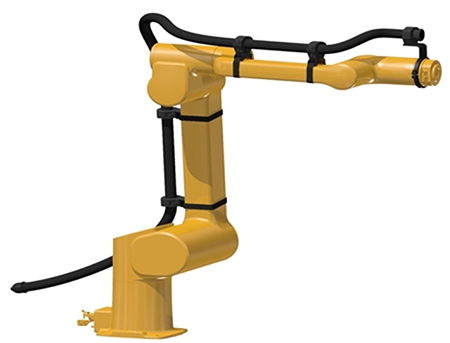

Conduit Sets are custom-designed for cable routing on HCR Series robots. Each set includes all necessary components, including strain relief. The FHS solution facilitates easy installation of the entire system using velcro tapes.
Specifications
Each set includes
> 4x basic body for mounting, with installed system holder Velcro
> 1x system holder
> 5x ball joints
> 1x strain relief
> 1x clamp
> 1x end sleeve
> 1.3, 2m or 3m special conduit for highly dynamic applications
> 1x installation instructions
호환 수준
How to install
1. Insert the cables into the conduit.
2. Cut the ET strain relief and thread the cables through the strain relief grommet.
3. Position the ET strain relief onto the corrugated pipe.
4. Secure the system holder to the clamp.
5. Attach the clamp onto the robot.
6. Fit the ball joints around the conduit and insert them into the system holders; ensure the ball joint with strain relief is secured in the system holder installed at the clamp.
7. Place the FHS around the robot arm and fasten it with velcro tape.
Order Guide
FHS-SH-Set HCR-12A
FHS-SH-Set HCR-5A
FHS-SH-Set HCR-3A
3693510
83693509
83693508
HCR-12A
HCR-5A
HCR-3A
